ST-5S features a lighter weight, sleeker design and bright OLED display

Video  FAQ  Calibration ST-5S Manual  Model ST-5  Older Models  Spare Parts


Smart Tweezers: Simplified Component Evaluations

Smart Tweezers is a patented design concept integrating a digital multimeter with a built-in gold-plated SMD probes and a display. This light weight device can be easily held and operated by one hand. and is idealy suitable for component evaluation on a PCB or a production line and sorting of SMD components. Smart Tweezers dramatically reduces time necessary to troubleshoot or debug a PCB simplifying process of locating a faulty component.

The new model ST-5S of the Digital Multimeter Smart Tweezers is the same device as Smart Tweezers ST-5 but with an updated look, akin to the LCR-Reader. This update boasts a lower weight of 1 oz., and a bright screen with all the same function and features that have become synonymous with Smart Tweezers.

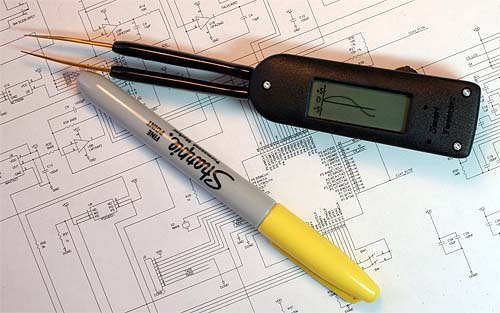

The unique design of Smart Tweezers combines a set of tweezers with non-magnetic stainless-steel gold-plated tweezers tips integrated with a powerful LCR-meter and bright OLED display. With automatic recognition of a measurement mode (L, C, and R) and automatic selection of the best test range allows the user to focus on the task at hand. Without the need to set-up between components, testing, sorting and evaluating components becomes much more efficient.

Inductance, Capacitance, Resistance When a component is grasped between the tweezers, Smart Tweezers automatically determiens the type of component and the best test range for highest accuracy measurements. The measurement values are then instantly available on the OLED display embedded in the handle of the device. This display is split into 3 main sections; Primary display shows present reading of the main impedance component (L,C, or R). The secondary display (at the top of the LCD screen) shows present reading of the secondary impedance component, such as a parasitic resistance of the capacitor (effective series resistor ESR).

Continuity/Open Test Smart Tweezers feature a continuity test for testing circuitry. An internal beeper will sound when a resistance is below threshold or an open circuit has been detected.

Durable Probes Tweezers tips are made of gold-plated non-magnetic stainless steel and can grasp components to a 0201 size or 0.3 mm either loose or already mounted.

Ergonomic Design and Convenient Controls Selecting the proper test functions and settings is simple with Smart Tweezers Joystick Navigation. Settings can be selected by pressing Up, Down, Left or Right, instead of using the menu. Smart Tweezers was designed to be easy to hold and operate with just one hand, and can be set for left-handed


Feature Summary:


User Manual in Adobe PDF Format

Comparison with older models in Adobe PDF format
Calibration Certificate

LCR-Reader: A Handheld LCR-meter for Non-Professionals

The LCR-Reader is the Smart Tweezers model for non-professionals and hobbyists looking for a device that provides an easy to use solution to testing and troubleshooting components that Smart Tweezers offers but at a lower price at around $200. LCR-Reader is very similar to Smart Tweezers but has a slightly lower basic accuracy, and a few less features.

Feature Summary

This model does not offer features such as: component sorting, continuity/diode/open circuit testing, parasitic offset subtraction feature or variable test signals (opting for only a 0.5Vrms test signal, which limits testing ceramic capacitors.) This model does not come with a calibration certificate.

Physical Specifications
Operating Temperature:  0 °C to +55 °C
Storage Temperature:  -40 °C to +70 °C
Relative Humidity: 0 % to 90 % (0 °C to 35 °C)
0 % to 70 % (35 °C to 55 °C)
Altitude Operating:  0-2000 meters
Storage: 10000 meters
Battery Type:  3.7V LiPO rechargeable 150mAh
Battery Life:  80 hours, 2 hour charging cycle
Electromagnetic Compatibility (EMC): Susceptibility and Emission: CE 89/336, FCC 15 part B
Size: 14.0 x 2.5 x 3.0 cm (3.94 x 0.9 x 1.5 in)
Weight:  53 grams (0.11 lb)
Warranty:  1 year

Basic Specifications
Measured Parameters:  C, L, R, ESR, D, Q
Measuring Frequencies:  1 kHz, 10 kHz, 120 Hz, 100 Hz
Measurement rate:  1 time per second, default
Resistance:  0.05 Ohms to 9.9 MOhms
Capacitance:  0.5 pF to 4999 µF
Inductance:  0.5µH to 999 mH
Quality Factor Q:  0.001 to 1000
Dissipation Factor D:  0.001 to 1000

Detailed Accuracy Specifications Accuracy is specified at 18°C to 28°C (64°F to 82°F), with relative humidity to 90%.

Resistance
Range:  0.1Ohm - 5MOhm
Accuracy: 0.2% in range 100 R to 10 K, 0.5% in range 1 R to 1 M
Test Frequency: 1 kHz

Capacitance:
Range:  10pF - 499µF
Accuracy: 0.2% in range 10 nF to 10 µF, 0.5% in range 100 pF to 1 mF
Resolution:  0.01pF in range 1pF- 100pF
Test Frequency:  1 kHz C > 1000pF; 10 kHz C < 1000pF; 100Hz C > 1µF

Inductance:
Range: 1µH-1H
Accuracy:  0.2% in range 10 mH to 100 mH, 0.5% in range 100 µH to 1H
Resolution:  0.01µH in range 1µH - 100µH
Test Frequency: 10 kHz L < 1µH; 1 kHz L > 1µH; 100Hz L > 1mH

Feature Summary
  Fully automatic measurement of Inductance, Capacitance and Resistance
  Automatic selection of the best range
  Component sorting with 1%, 5%, 10% an 20% tolerance
  Lithium-Ion battery and USB Charger
  Continuity and Diode test


Semi-automatic offset subtraction

Purchasing Info Purchase Online

30 days money back guarantee. Limited time offer.

Sale Price US $399.99 (CA$399.99)

Fax your Purchase Order to

Fax (519)725-9522

Phone (519) 888-9906
Toll Free 1-877-
823-7576

Siborg Systems Inc

24 Combermere Crescent

Waterloo, Ontario N2L 5B1 Canada

smarttweezers@siborg.com



Designed and Manufactured In Canada. Patented in Canada, USA, Europe, Japan, China, Taiwan, Hong Kong, and India.
